Linear Type Rheostat

    It is variable resistor which is use to control the flow of current by varying of resistance.

    One of the most common function of rheostat is to control current.

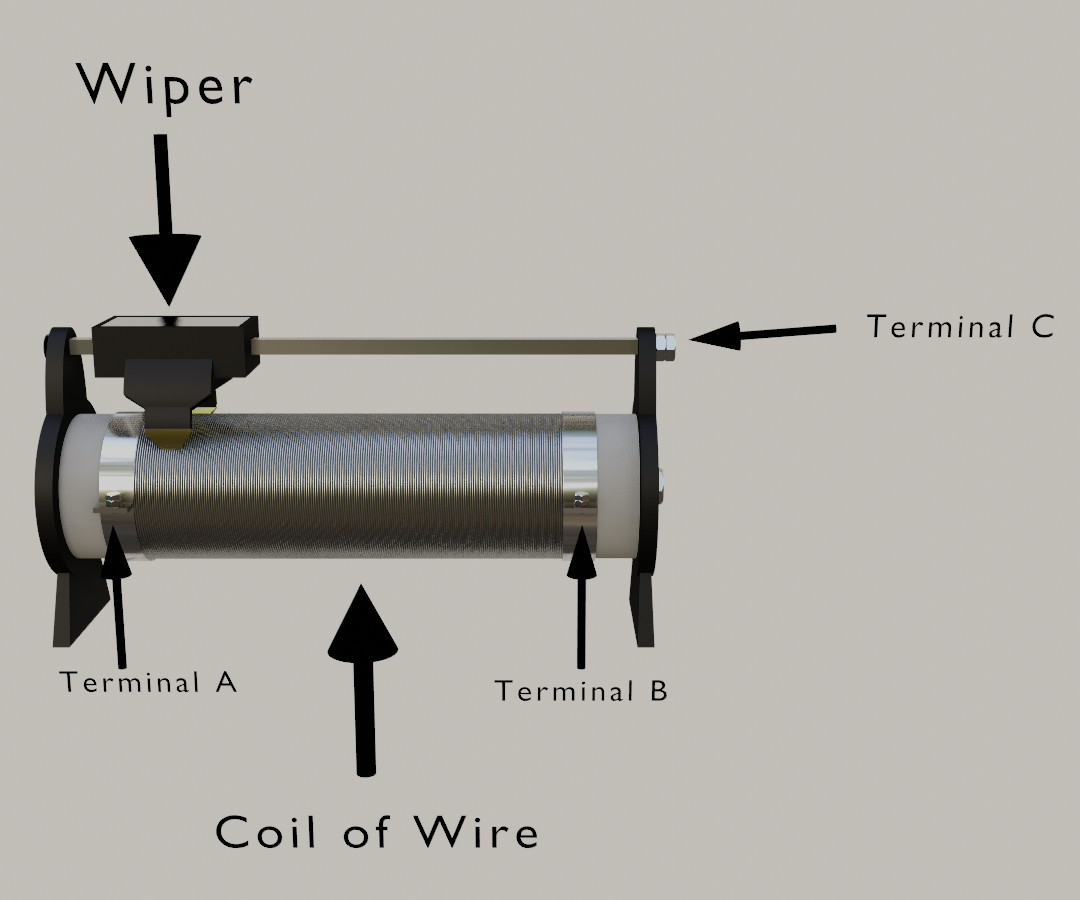

    It has sliding terminal which move along the linear resistive path to change its resistance.

    It is mainly used in laboratory applications.

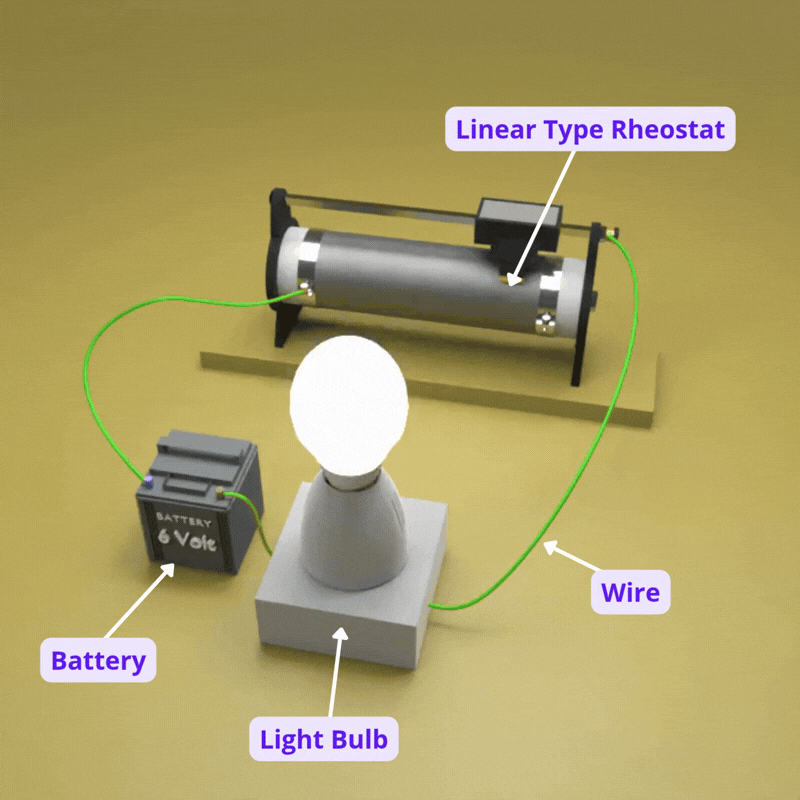

    A wiper in move linearly along the linear resistive path to change its resistance this causes the bulb goes dim or brighten.

    3D animation video about Linear Type Rheostat:

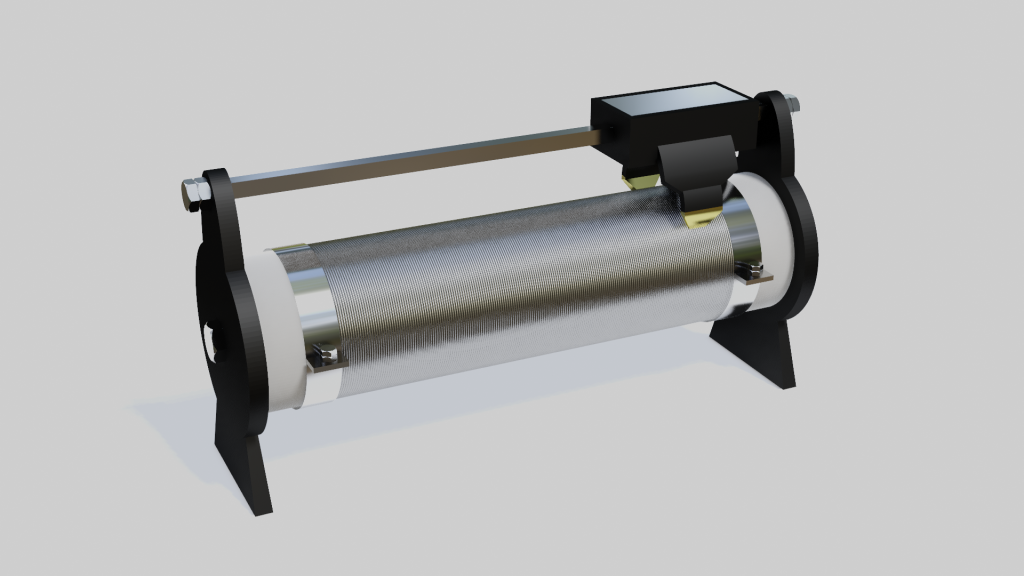

    Linear Type Rheostat (3D Viewer):
